205 Bearing Stationary Switches
Stationary Switch Replacement Parts
For repair of motors with 6205 bearings.
Item # |
Motor Manufacturer |
Bearing |
Figure Image |
LH Contact |
RH Contact |
Contact Diameter |
Mounting Centers |
Important Note |
List Price |
|---|---|---|---|---|---|---|---|---|---|
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A BALDOR | Bearing N/A 205 |
Figure Image
 Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A BALDOR | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8001 S-8001/Asset/Figure-AX.jpg | Motor Manufacturer N/A DAYTON | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A DOERR | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.C. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8001 S-8001/Asset/Figure-AX.jpg | Motor Manufacturer N/A DOERR | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8001 S-8001/Asset/Figure-AX.jpg | Motor Manufacturer N/A DOERR | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A DOERR | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in |
Important Note
N/A Original may be fiberboard. |
$23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A DOERR | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in |
Important Note
N/A Original may be fiberboard. |
$23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A DOERR | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in |
Important Note
N/A Original may be fiberboard. |
$23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A DOERR | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in |
Important Note
N/A Original may be fiberboard. |
$23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A DOERR | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in |
Important Note
N/A Original may be fiberboard. |
$23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A DOERR | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in |
Important Note
N/A Original may be fiberboard. |
$23.15 |
| S-8007 S-8007/Asset/AV.jpg | Motor Manufacturer N/A DOERR | Bearing N/A 205 |
Figure Image
 AV |
LH Contact N/A D.T. | RH Contact N/A N.O. | Contact Diameter N/A 5/16 in | Mounting Centers N/A 2 3/4 in3 3/8 in |
Important Note
N/A Original may be fiberboard. |
$32.75 |
| S-8002 S-8002/Asset/FT.JPG | Motor Manufacturer N/A DOERR | Bearing N/A 205 |
Figure Image

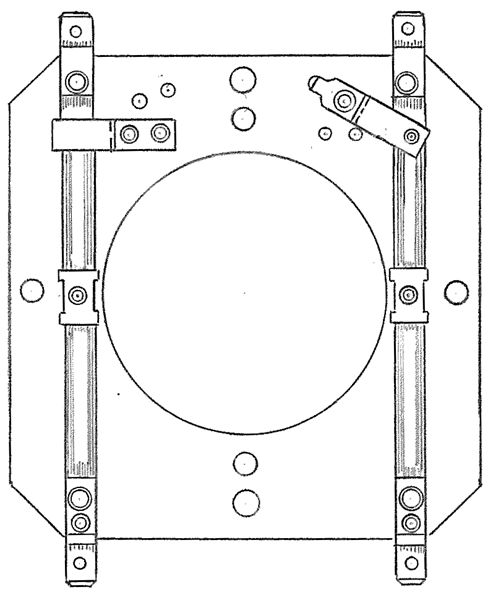

 FT |
LH Contact N/A N.O. | RH Contact N/A D.T. | Contact Diameter N/A 5/16 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $32.45 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A ELECTRA GEAR | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A G.E. CANADA | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A HOBART | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A HOWELL | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A HOWELL | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A HOWELL | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A LEESON | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A LEESON | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8028 S-8028/Asset/AT.JPG | Motor Manufacturer N/A LEESON | Bearing N/A 205 |
Figure Image
 AT |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $32.12 |
| S-8001 S-8001/Asset/AT.JPG | Motor Manufacturer N/A LEESON | Bearing N/A 205 |
Figure Image
Figure-AX |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $23.15 |
| S-8026 S-8026/Asset/AT.JPG | Motor Manufacturer N/A LEESON | Bearing N/A 205 |
Figure Image
AT |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | Mounting Centers N/A 2 3/4 in3 3/8 in | Important Note N/A | $32.65 |
