202 Bearing Stationary Switches
Stationary Switch Replacement Parts
For repair of motors with 6202 bearings.
Item # |
Motor Manufacturer |
Bearing |
Figure Image |
LH Contact |
RH Contact |
Contact Diameter |
Mounting Centers |
Important Note |
List Price |
|---|---|---|---|---|---|---|---|---|---|
| S-6001 S-6001/Asset/FP.jpg | Motor Manufacturer N/A DOERR | Bearing N/A 202 |
Figure Image
 FP |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in |
Important Note
N/A Wear buttons are plastic. |
$16.85 |
| S-6001 S-6001/Asset/FP.jpg | Motor Manufacturer N/A DOERR | Bearing N/A 202 |
Figure Image
FP |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in | Important Note N/A | $16.85 |
| S-6001 S-6001/Asset/FP.jpg | Motor Manufacturer N/A WISSOTA | Bearing N/A 202 |
Figure Image
|
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in | Important Note N/A | $16.85 |
| S-6003 S-6003/Asset/FP.jpg | Motor Manufacturer N/A MAGNETICS INTERNATIONAL | Bearing N/A 202 |
Figure Image
|
LH Contact N/A N.C. | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in |
Important Note
N/A Has brass wear buttons. |
$21.90 |
| S-6003 S-6003/Asset/FP.jpg | Motor Manufacturer N/A MAGNETICS INTERNATIONAL | Bearing N/A 202 |
Figure Image
|
LH Contact N/A N.C. | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in |
Important Note
N/A Has brass wear buttons. |
$21.90 |
| S-6004 S-6004/Asset/FP.jpg | Motor Manufacturer N/A DOERR | Bearing N/A 202 |
Figure Image
|
LH Contact N/A N.O. | RH Contact N/A D.T. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in | Important Note N/A | $21.90 |
| S-6004 S-6004/Asset/FP.jpg | Motor Manufacturer N/A LIMA ELECTRIC MOTOR MAGNETEK - ALSO SEE CENTURY ELECTRIC | Bearing N/A 202 |
Figure Image
|
LH Contact N/A N.O. | RH Contact N/A D.T. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in | Important Note N/A | $21.90 |
| S-6006 S-6006/Asset/FP.jpg | Motor Manufacturer N/A TORQ CORPORATION | Bearing N/A 202 |
Figure Image
|
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in |
Important Note
N/A Holden BB-22. |
$17.85 |
| S-6007 S-6007/Asset/FP.jpg | Motor Manufacturer N/A DOERR | Bearing N/A 202 |
Figure Image
FP |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in |
Important Note
N/A Original may be fiberboard. |
$14.99 |
| S-6007 S-6007/Asset/FP.jpg | Motor Manufacturer N/A DOERR | Bearing N/A 202 |
Figure Image
FP |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in |
Important Note
N/A Original may be fiberboard. |
$14.99 |
| S-6007 S-6007/Asset/FP.jpg | Motor Manufacturer N/A FRANKLIN ELECTRIC | Bearing N/A 202 |
Figure Image
|
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in | Important Note N/A | $14.99 |
| S-6007 S-6007/Asset/FP.jpg | Motor Manufacturer N/A MAGNETICS INTERNATIONAL | Bearing N/A 202 |
Figure Image
|
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in | Important Note N/A | $14.99 |
| S-6007 S-6007/Asset/FP.jpg | Motor Manufacturer N/A MAGNETICS INTERNATIONAL | Bearing N/A 202 |
Figure Image
|
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in | Important Note N/A | $14.99 |
| S-6007 S-6007/Asset/FP.jpg | Motor Manufacturer N/A MAGNETICS INTERNATIONAL | Bearing N/A 202 |
Figure Image
|
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 1 7/8 in | Important Note N/A | $14.99 |
| S-6007 S-6007/Asset/FP.jpg | Motor Manufacturer N/A MOTOR APPLIANCE | Bearing N/A 202 |
Figure Image
|
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A | Mounting Centers N/A 1 7/8 in |
Important Note
N/A Has brass wear buttons. |
$14.99 |
| S-6010 S-6010/Asset/BJ.JPG | Motor Manufacturer N/A BODINE | Bearing N/A 202 |
Figure Image
 BJ |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 7/32 in | Mounting Centers N/A | Important Note N/A | $16.99 |
| S-6013 S-6013/Asset/BI.jpg | Motor Manufacturer N/A TORQ CORPORATION | Bearing N/A 202 |
Figure Image
 BI |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 5/16 in | Mounting Centers N/A 2 1/8 in |
Important Note
N/A Replaces Chinese made: jin-chin, chen-chiang, toshiba, jet woodworking tools, grizzly, tzu-liang. |
$20.65 |
| S-6014 S-6014/Asset/a1241.jpg | Motor Manufacturer N/A EASTMAN | Bearing N/A 202 |
Figure Image
 BP |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 5/16 in | Mounting Centers N/A 2 in |
Important Note
N/A Replaces Eastman 580C1-70. |
$21.30 |
| S-6015-OBSOLETE, NO REPLACEMENT S-6015-OBSOLETE, NO REPLACEMENT/Asset/BR.jpg | Motor Manufacturer N/A WOLF MACHINE | Bearing N/A 202 |
Figure Image
 BR |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A | Mounting Centers N/A | Important Note N/A | $0.00 |
| S-6016 S-6016/Asset/FP.jpg | Motor Manufacturer N/A WOLF MACHINE | Bearing N/A 202 |
Figure Image
|
LH Contact N/A D.T. | RH Contact N/A D.T. | Contact Diameter N/A | Mounting Centers N/A | Important Note N/A | $0.00 |
| S-6017-OBSOLETE USE S-6010 S-6017-OBSOLETE USE S-6010/Asset/BJ.JPG | Motor Manufacturer N/A EMERSON - ALSO SEE DOERR & U | Bearing N/A 202 |
Figure Image
BJ |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 1/8 in | Important Note N/A | $0.00 |

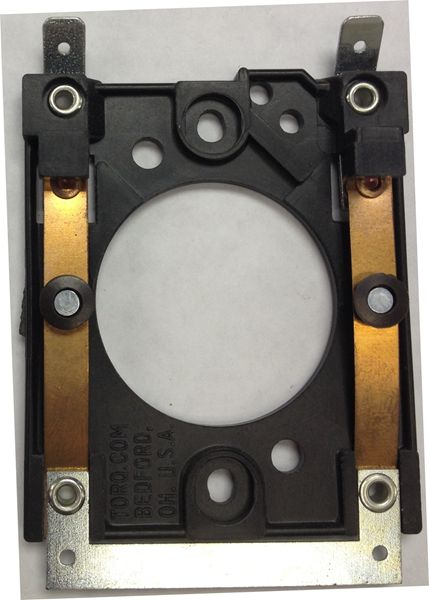

| S-6019 S-6019/Asset/NF.jpg | Motor Manufacturer N/A FIR | Bearing N/A 202 |
Figure Image
 NF |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 5/16 in | Mounting Centers N/A 2 3/64 to 2 1/8 in | Important Note N/A | $20.42 |
| S-6019 S-6019/Asset/NF.jpg | Motor Manufacturer N/A IMPERIAL | Bearing N/A 202 |
Figure Image
NF |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 5/16 in | Mounting Centers N/A 2 1/8 in | Important Note N/A | $20.42 |

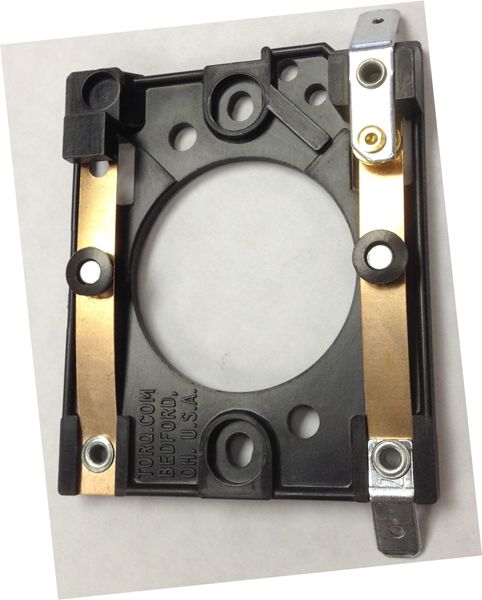

| S-6020 S-6020/Asset/AQ.jpg | Motor Manufacturer N/A FIR | Bearing N/A 202 |
Figure Image
 AQ |
LH Contact N/A | RH Contact N/A N.C. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 3/64 to 2 1/8 in | Important Note N/A | $14.89 |
| S-6023 S-6023/Asset/BZ.jpg | Motor Manufacturer N/A ABB-BALDOR | Bearing N/A 202 |
Figure Image
|
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 3/64 to 2 1/8 in | Important Note N/A | QUOTE |
